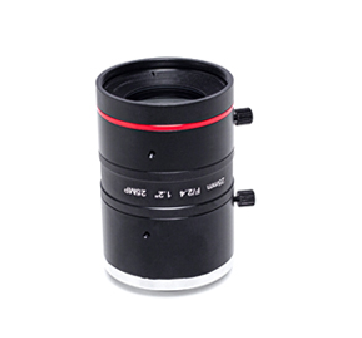

PHENIX凤凰光学 12FA2524-25MP 面阵镜头

焦距(mm)

Focal Length

12mm

16mm

25mm

35mm

50mm

像面尺寸(φ)

Image Size

φ19.3

φ19.3

φ19.3

φ19.3

φ19.3

像素尺寸(μm)

Pixel Size

2.74μm

2.74μm

2.74μm

2.74μm

2.74μm

光圈范围(F数)

F-Number

F2.4-16

F2.4-16

F2.4-16

F2.4-16

F2.4-16

工作距离(mm)

Working Distance

100mm-∞

100mm-∞

150mm-∞

150mm-∞

250mm-∞

控制

Control

光圈

Iris

手动 Manual

手动 Manual

手动 Manual

手动 Manual

手动 Manual

聚焦

Focus

手动 Manual

手动 Manual

手动 Manual

手动 Manual

手动 Manual

*近物距视场范围(mm)

Minimum Object Distance

FOV

-149.68 x -129.48

-105.17 x -90.98

-88.89 x -76.71

-63.65 x -55.06

-74.71 x -64.63

视场角(°)

Angle of View

1.2"

62.33x55.33x76.12

48.83x42.86x61.36

31.42x27.32x41.19

22.51x19.53x29.33

15.66x13.57x20.50

1.1"

54.5x54.5x71.6

42.12x42.12x57.24

27.58x27.58x38.32

19.1x19.1x26.76

13.28x13.28x18.76

1.0"

56.2x43.6x71.08

43.46x33.24x53.04

28.52x21.58x35.3

19.76x14.9x24.54

13.76x10.34x17.22

分辨率

Resolution

25MP

25MP

25MP

25MP

25MP

TV畸变

(*近物距至无穷远*大畸变值)

Max TV Distortion

0.870

0.073

-0.106

-0.072

0.062

基准工作距离TV畸变

(200mm-400mm)%

Optimal TV Distortion

0.390

0.070

-0.040

0.015

0.011

接口

Mount

C

C

C

C

C

滤镜尺寸(mm)

Filter Size

M40.5*0.5

M37*0.5

M40.5*0.5

M40.5*0.5

镜头尺寸(mm)

Dimension

φ50*66.96

φ42.5*59.76

φ40*58.44

φ42*59.32

φ42*61.16

重量(g)

Weight

218.5

189.5

161.7

174

179

温度范围(°)

Operating Temperature

-10~+50℃

-10~+50℃

-10~+50℃

-10~+50℃

-10~
